Handle machine,with a screwdriver

Handle machine,with a screwdriver

  • Min.Order Quantity: 1 Set
  • Supply Ability: 999 Sets per Month
  • Port: ShenZhen
  • Payment Terms: L/C
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2012-07-12
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  DongGuan
  • Brand Name:  baizai
  • Model Number:  V120t

Screw diameter:42mm      Screw speed:0-250r.p.m      Injection molding quality:206g

Clamping force:3120kN         Theoretical shot volume:221cm3

Motor power:14 18.5kw     Max.size of die:300mm*250mm    Machine weight:7.1T

Machine size:11920*2080*3600mm     System pressure:13.7Mpa(140)




  • Place of Origin:  DongGuan
  • Brand Name:  baizai
  • Model Number:  V120t

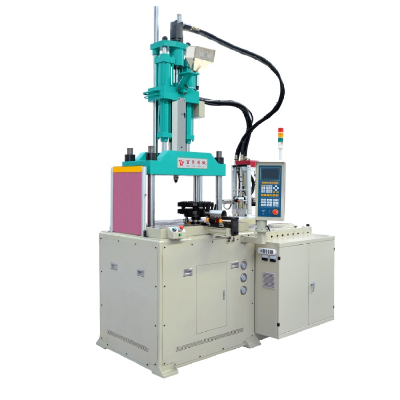

120T handle machine

INJECTTON UNIT



螺杆直徑

Screw diameter

mm

Φ42

理論注射量

Theoretical shot volume

cm3

221

注射品質(PS

Injection werght(ps)

g(oz)

2067.3

射出速率

Injectiom rate

cm3/sec

138

射出壓力

Injection pressure

Mpa(kgf/cm2)

140(1428)

螺杆轉速

Screw speed

r.p.m

0-250

CLAMPING UNTT



鎖模力

Clamping force

Kn(tons)

120

合模行程

Clamping stroke

mm

250

最小模厚

Min.norm thick

mm

210

最大開距

Max.distance

mm

460

柱間距(L*W

Column spacing

mm

990*405

最大模具尺寸(L*W)

Max.size of die

mm

300*250

成品頂出距離

Finished product top distance

mm

65

頂出力

Top output

Kn(tons)

17.2

OTHERS



系統壓力

System pressure

Mpa(kgf/cm2)

140

電機功率

Motor power

Kw/hp

14 18.5

電熱功率

Electric power

kw

4.2*3

機械尺寸

Mechanical

size

L*W

mm

1920*2080

H

mm

3600

機械重量

Machine weight

tons

7.1
