- Place of Origin: Dong Guan
- Brand Name: baizai

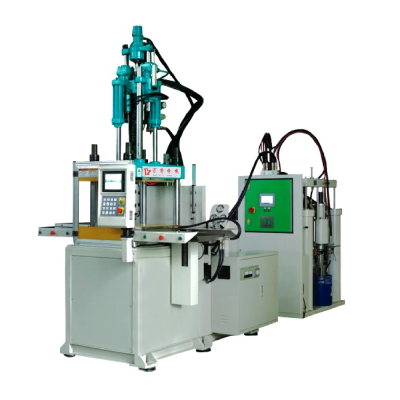

- Model Number: v55SD-LSR
Screw diameter:28-36mm Screw speed:0-240r.p.m Injection molding quality:80g-132g
Clamping force:55kN Theoretical shot volume:86cm3-142cm3
Motor power:7.5kw\10kw Max.size of die:350mm*350mm Machine weight:2.1T
Machine size:1650*1380*2400(2990)mm System pressure:13.7Mpa(140)
- Place of Origin: Dong Guan
- Brand Name: baizai
- Model Number: v55SD-LSR
V55SD-LSR液態矽膠單滑板注塑機參數表 | ||||
INJECTTON UNIT 注 射 裝 置 | 螺杆直徑 Screw Diameter | mm | Φ28-Φ36 | |
理論注射量 Theoretical Volume | cm3 | 86-142 | ||
注射品質（PS） Injection Werght(ps) | g(oz) | 80/132（2.8-4.6） | ||
射出速率 Injectiom Rate | cm3/sec | 63-105 | ||
射出壓力 Injection Pressure | Mpa(kgf/cm2) | 212/128(2170-1312) | ||
螺杆轉速 Screw Speed Rotation | r.p.m | 0-240 | ||
CLAMPING UNTT 鎖 模 裝 置 | 合模力 Clamping From Platens | Kn(tons) | 539(55) | |
合模行程 Clamp Stoke | mm | 200 | ||
最小模厚 Min.Mold Thickness | mm | 180（260）120（200） | ||
最大開距 Max.Opening | mm | 380（460）320（400） | ||
柱間距 Space Between Tie Bars | mm | 445*255 | ||
滑板尺寸 Slide Size | mm | 890*396 | ||
成品頂出距離 Ejector Distance | mm | 100 | ||
頂出力 Ejector Force | Kn(tons) | 26.5(2.7) | ||
OTHERS 其 它 | 系統壓力 System Pressure | Mpa(kgf/cm2) | 13.7(140) | |
電機功率 Electric Power | Kw(Hp) | 7.5(10) | ||
油箱容積 Fuel tank capacity | L | 180 | ||
機械尺寸 Machine Dimension | L*W | mm | 1650*1380 | |
H | mm | Min：2400 Max：2990 | ||
機械重量 Machine Weight | tons | 2.1 | ||
