- Place of Origin: DongGuan
- Brand Name: baizai

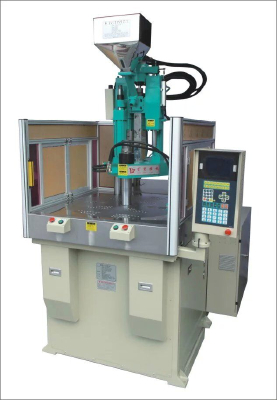

- Model Number: V55R2
Screw diameter:32-36mm Screw speed:0-240r.p.m Injection molding quality:104g-132g
Clamping force:55kN Theoretical shot volume:112.5cm3-142cm3
Motor power:7.5kw\10kw Max.size of die:400mm*400mm Machine weight:1.6T
Machine size:1860*1265*2335(2945)mm System pressure:13.7Mpa(140)
- Place of Origin: DongGuan
- Brand Name: baizai
- Model Number: V55R2
TY-85R2 | ||||
INJECTTON UNIT 注 射 裝 置 | 螺杆直徑 Screw diameter | mm | Φ28-Φ36 | |
理論注射量 Theoretical shot volume | cm3 | 86-142 | ||
注射品質（PS） Injection werght(ps) | g(oz) | 80-132 | ||
射出速率 Injectiom rate | cm3/sec | 63-105 | ||
射出壓力 Injection pressure | Mpa(kgf/cm2) | 2170-1312 | ||
螺杆轉速 Screw speed | r.p.m | 0-240 | ||
CLAMPING UNTT 鎖 模 裝 置 | 鎖模力 Clamping force | Kn(tons) | 55 | |
合模行程 Clamping stroke | mm | 200 | ||
最小模厚 Min.norm thick | mm | 180 | ||
最大開距 Max.distance | mm | 380 | ||
柱間距（L*W） Column spacing | mm | 445*225 | ||
圓盤尺寸 Rotary size | mm | Φ820 | ||
最大模具尺寸(L*W) Max.size of die | mm | 400*400 | ||
成品頂出距離 Finished product top distance | mm | 40 | ||
頂出力 Top output | Kn(tons) | 1.75 | ||
OTHERS 其 它 | 系統壓力 System pressure | Mpa(kgf/cm2) | 140 | |
電機功率 Motor power | Kw/hp | 7.5-10 | ||
電熱功率 Electric power | kw | 5.5 | ||
機械尺寸 Mechanical size | L*W | mm | 1860*1265*2335 | |
H | mm | |||
機械重量 Machine weight | tons | 1.6 | ||
