Product Details

Screw diameter:26-32mm Screw speed:0-240r.p.m Injection molding quality:49g-80g

Clamping force:35kN Theoretical shot volume:64cm3-96cm3

Motor power:5.5kw\7.5kw Max.size of die:350mm*350mm Machine weight:1.4T

Machine size:1680*1152*2204(2269)mm System pressure:13.7Mpa(140)

SPECICATION MODEL		UNIL	V35S
INJECTTON UNIT	Screw diameter	mm	SP（∮18/22）	∮22 ∮25 ∮28
	Screw stroke	mm	115	140
	Theoretical shot volume	mm3	28/41.7	53 68.8 86
	(PS)lnjection molding quality	g(oz)	26（0.9）38.7（1.3）	49（1.7） 63.8（2.2） 80（2.8）
	Plasticizing capacity	g/s	2.1/4.2	4.2 6 8.2
	Max injection pressure	Mpa(kgf/cm2	254（2592）/170（1735）	248（2530）192（1960）153（1563）
	lnjection rate	cm3/s	43/64	44 57 71
	lejection speed(Rate increase)	mm/s	PS 169（273）	V35 116（186）
	Screw speed	r.p.m	0-240
	Nozzle contact force	kN(tf)	47.3（4.8）
	Nozzle projecting tenplate size	mm	≥45
CLAMPING UNTT	Clanping force	mm	343（35）
	Opening force	kN(tf)	76.5（7.8）
	Clamping stroke	kN(tf)	200
	Min.norm theck	mm	150（200）90（140）
	Max.distance	mm	350（400）290（340）
	(LxW)Column spacing	mm	370*210
	(LxW)Template/slide size	mm	350*350
	Template/slide size	mm	440*350
	Finished producttop distance	mm	100
	Top output	kN(tf)	17.4（1.78）
	Nuel tank capacity	pcs	3
Others	Systen pressure	Mpa(kgf/cm2	13.7（140）
	Fuel tank capacity	L	130
	Moror power	KW(HP)	5.5（7.5）
	Electric power	KW	3.6
	Temperature number		2 1
	Table height	mm	929
	Mechanical size	mm	1680*1152 2204（2696）
	Machene weight	tf	1.4

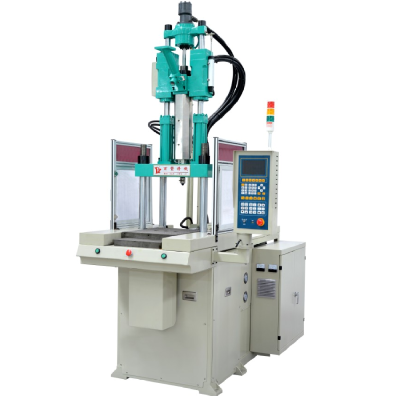

Single Slide Injection Molding Machine
