Product Details
- Place of Origin: Dong Guan
- Brand Name: baizai

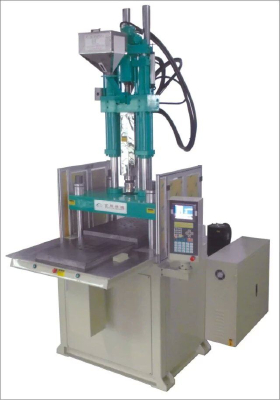

- Model Number: V55-S
Screw diameter:28-36mm Screw speed:0-240r.p.m Injection molding quality:80g-132g
Clamping force:55kN Theoretical shot volume:86cm3-142cm3
Motor power:7.5kw\10kw Max.size of die:400mm*350mm Machine weight:1.7T
Machine size:2016*1265*2405(2995)mm System pressure:13.7Mpa(140)
- Place of Origin: Dong Guan
- Brand Name: baizai
- Model Number: V55-S
| SPECICATION MODEL | UNIL | V55S | ||||
| INJECTTON UNIT | Screw diameter | mm | SP（∮18/22） | ∮28 ∮32 ∮36 | ||
| Screw stroke | mm | 115 | 141 | |||
| Theoretical shot volume | mm3 | 28/41.7 | 86 112.5 142 | |||
| (PS)lnjection molding quality | g(oz) | 26（0.9）38.7（1.3） | 80（2.8） 104（3.6） 132（4.6） | |||
Plasticizing capacity | g/s | 2.1/4.2 | 8.2 11.7 16.5 | |||
Max injection pressure | Mpa(kgf/cm2 | 254（2592）/170（1735） | 212（2170）162（1661）128（1312） | |||
| lnjection rate | cm3/s | 53/80 | 63 83 105 | |||
lejection speed(Rate increase) | mm/s | PS 210（305） | V35 V55 143（207） 103（149） | |||
Screw speed | r.p.m | 0-240 | ||||
| Nozzle contact force | kN(tf) | 47.3（4.8） | ||||
| Nozzle projecting tenplate size | mm | ≥45 | ||||
CLAMPING UNTT | Clanping force | mm | 539（55） | |||
| Opening force | kN(tf) | 81.8（8.4） | ||||
| Clamping stroke | kN(tf) | 200 | ||||
| Min.norm theck | mm | 180（260）120（200） | ||||
Max.distance | mm | 380（460）320（400） | ||||
| (LxW)Column spacing | mm | 445*255 | ||||
| (LxW)Template/slide size | mm | 400*400 | ||||
| Template/slide size | mm | 500*396 | ||||
| Finished producttop distance | mm | 100 | ||||
| Top output | kN(tf) | 26.5（2.7） | ||||
| Nuel tank capacity | pcs | 3 | ||||
| Others | Systen pressure | Mpa(kgf/cm2 | 13.7（140） | |||
| Fuel tank capacity | L | 140 | ||||
| Moror power | KW(HP) | 7.5（10） | ||||
| Electric power | KW | 5.5 | ||||
| Temperature number | 3 1 | |||||
| Table height | mm | 977 | ||||
| Mechanical size | mm | 2016*1265 2405(2995） | ||||
Machene weight | tf | 1.7 | ||||
