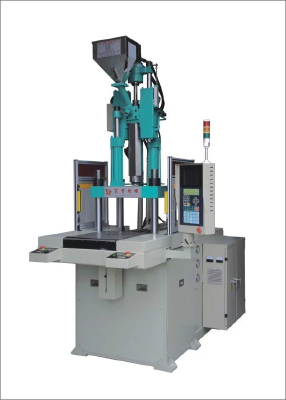

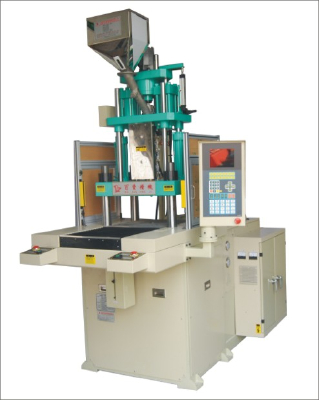

Product Details
- Place of Origin: Dong Guan
- Brand Name: baizai
- Model Number: V85-S
Screw diameter:32-40mm Screw speed:0-300r.p.m Injection molding quality:105g-164g
Clamping force:85kN Theoretical shot volume:113cm3-176cm3
Motor power:11kw\15kw Max.size of die:500mm*4000mm Machine weight:3.3T
Machine size:2140*1410*2736(2456)mm System pressure:13.7Mpa(140)
- Place of Origin: Dong Guan
- Brand Name: baizai
- Model Number: V85-S
| SPECICATION MODEL | UNIL | V85S | ||||
INJECTTON UNIT | Screw diameter | mm | SP（∮18/22） | ∮32 ∮36 ∮40 | ||
| Screw stroke | mm | 115 | 140 | |||
| Theoretical shot volume | mm3 | 28/41.7 | 113 142 176 | |||
| (PS)lnjection molding quality | g(oz) | 26（0.9）38.7（1.3） | 105（3.7） 132（4.6） 164（5.86） | |||
Plasticizing capacity | g/s | 2.1/4.2 | 14.6 20.6 26.8 | |||
| Max injection pressure | Mpa(kgf/cm2 | 254（2592）/170（1735） | 229（2331）181（1842）146（1492） | |||
| lnjection rate | cm3/s | 77/116 | 86 109 134 | |||
lejection speed(Rate increase) | mm/s | PS 305（392） | V35 V55 V85 207（267） 149（192） 107(138) | |||
Screw speed | r.p.m | 0-300 | ||||
| Nozzle contact force | kN(tf) | 51.7（5.3） | ||||
| Nozzle projecting tenplate size | mm | ≥45 | ||||
CLAMPING UNTT | Clanping force | mm | 833（85） | |||
| Opening force | kN(tf) | 101.7（10.4） | ||||
| Clamping stroke | kN(tf) | 250 | ||||
| Min.norm theck | mm | 230（330）170（270） | ||||
Max.distance | mm | 480（580）420（520） | ||||
(LxW)Column spacing | mm | 500*885 | ||||
(LxW)Template/slide size | mm | 500*400 | ||||
| Template/slide size | mm | 620*490 | ||||
| Finished producttop distance | mm | 100 | ||||
Top output | kN(tf) | 26.5（2.7） | ||||
Nuel tank capacity | pcs | 3 | ||||
| Others | Systen pressure | Mpa(kgf/cm2 | 13.7（140） | |||
| Fuel tank capacity | L | 280 | ||||
| Moror power | KW(HP) | 11（15） | ||||
| Electric power | KW | 6.4 | ||||
| Temperature number | 3 1 | |||||
| Table height | mm | 1051 | ||||
| Mechanical size | mm | 2140*1410 2736（2456） | ||||
| Machene weight | tf | 3.3 | ||||
